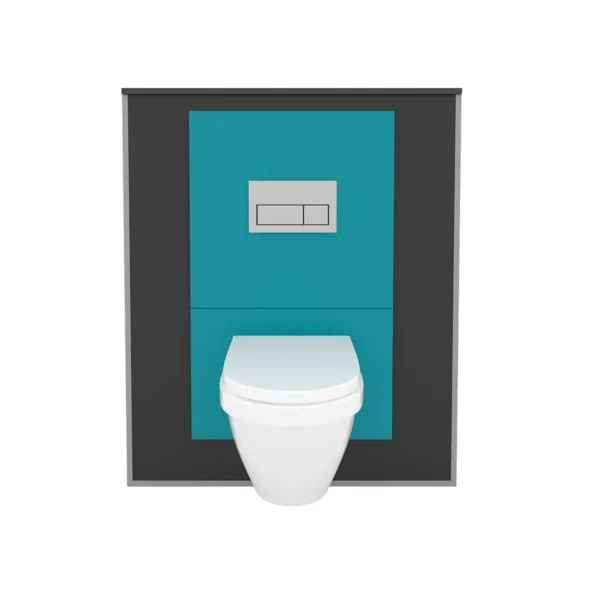

IPS box system
What's in the box
1 x 200 x 1100 x 18MM MFC Plinth
1 x 100 x 1100 x 18MM MFC Top Flash
1 x 300 x 1100 x 18MM MFC Top Lid
2 x 250 x 1682 x 18MM MFC Side Flash
1 x 400 x 680 x 18mm – MFC Excess Panel
1 x 600 x 680 x 18mm- MFC Excess Panel
1 x 782 x 680 x 18mm -MFC Excess Panel
2 X 2000mm Aluminium Wall Channel
1 X 1100mm Floor Aluminium Floor Channel
2 X 8mm X 1500mm Anchoring Rods
12 X Wall Anchoring Plates
14 X Pairs Lift Off Keku Panel Clips
100 X 4.0 X 20mm Panel Screws
9 X 20mm L Brackets
8 X Joint Support Straps
3 X Wall L Brackets
1 X Installation Instructions
INSTALLATION
CONNECT IPS SYSTEMS have been design for quick easy site installation. They are fully adjustable in width and depth. Overall maximum width 1100m wide and minimum width 800mm
To alter the IPS width, you simply alter the flash frame width to the size which you require. Measuring your internal cubicle width size. For example, if your internal cubicle width is 900mm. You cut the plinth, top flash, and lid to 900mm.
Reducing frame width
900mm cubicle width - Excess panel 680mm + Min Overhang 20mm either side (40mm)
Example
900 – 680 + 40 = 260 ÷ 2 = 130MM flash frame each side
Minimum side flash frames size 80mm each side.
Colour choices
Choice of 2 x Excess Panels colour options
Choice of 2 x Flash frame colour options.
They can help to prevent vandalism, as well as to make the room easier to clean and more hygienic. Perfect to hide hidden toilet systems and pipe work.
Connect IPS box sets have been developed to fit inside our cubicles. Our easy step by step online ordering service is unique and simple. Choose your flash frame colour choose your excess panel colour, then checkout. 1 x IPS system for each cubicle required.
We will ship your order out to you within 2 – 5 working days.
Description
Material - 18mm Melamine face chip board MFC
Height -2000mm overall / not adjustable
Width – 1100mm max – 800mm min
Excess panel width - 680mm / not adjustable
Depth - Adjustable 400mm
Width adjustment – yes
Environment -Dry Area only
Plinth - To be coved up by others on site
Colours – 2 x colour available
